Door Coordinator Carry Bar

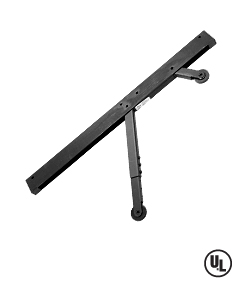

1100 carry bar by rockwood hardware.

Door coordinator carry bar. Coordinators work with a flush bolt to secure a door and ensure a pair of doors close in proper order for latching to occur. Surface mounted to the bottom surface of the frame soffit. 2 each 1 4 20 x 1 rh ms 2 each 1 4 20 x 11 1 16 sex bolts. Cor7g for use on pairs of doors with astragal on active door up to 4 or with astragal on inactive door up to 3 4 or with astragal on both doors up to 2 10.

Ives offers various accessories to ensure a door is hung protected and secured. With many bar coordinators filler bars mounting brackets gravity coordinators and carry bars ives has coordinator needs covered. 2601ab hole layout for 2601ab 2601ab 2601c coordinator 7 8 door door extra holes if needed 1 1 4 7 16 7 16 1 1 4 3 1 4. The cor series does not cover the entire length of the stop so an fl filler bar can be provided to maintain architecturally clean lines.

Bar coordinators ives cor series. 297d coordinator recommended when using self latching flushbolts on inactive door. The coordinator must be 6 longer than the active door width and shorter than the overall frame opening between stops. A carry bar is used when it is possible to open the inactive door before opening the active door.

Black prime coat optional at additional cost. The carry bar is not needed when the inactive door is equipped with flush bolts. Us3 us4 us10 us10b us26 us26d us32. There are 2 types of door coordinators available.

The active door lever located nearest to the active stop holds the active door open until the trigger mechanism is released by the closing of the inactive leaf. Recommended for use with flushtop metal doors only when using a metal door with automatic flushbolts. The carry bar will throw the active door open and allow the coordinator to engage both doors and coordinate them to close correctly. 297c carry bar is needed when installing an astragal.

When flush bolts are not provided the carry bar permits the intactive door to open before the active door. For use with automatic flushbolts only.
